Meteor Photography

by Roger N. Clark

Meteor photography in the night sky poses a special challenge. Meteors move fast, but most are quite faint. To capture them you need large aperture area (meaning fast lenses). But meteors can occur all over the sky, so there is a balance in available lens technology and angular coverage. The best lenses for meteor are not very wide angle because their physical apertures collect too little light.


The Night Photography Series:


Contents

Introduction
The Lens Aperture Area versus Angular Coverage Trade
Camera Placement Strategy
Best Lenses for Meteor Photography
Longer Focal Lengths
In-the-Field Operations
Processing Meteor Composites
Conclusions
References and Further Reading


All images, text and data on this site are copyrighted.
They may not be used except by written permission from Roger N. Clark.
All rights reserved.

If you find the information on this site useful, please support Clarkvision and make a donation (link below).


Introduction


Figure 1. Perseid Meteor Shower Nightscape and Airglow, August, 2015 illustrating the variety of meteor trails in length, location and brightness. Natural color. This is a composite image made from nearly 600 images from 3 cameras over 3.3 hours. See the Gallery Image for more information about this image.

Meteors in the night sky move fast, but they are commonly faint, similar in brightness to stars in the night sky, or occasionally as bright as planets, and rarely brighter. Typical night sky photography for stars requires many tens of seconds to minutes or hours of exposure time (see parts 1a, 1c of this series). But meteors move very fast, so one pixel in your camera may only "see" the meteor for a fraction of a second. Effectively, the exposure times for meteors are very short, even when you leave the shutter open for minutes. Thus recording meteors with your camera is a significant challenge, similar to doing night sky photography with only a fraction of a second exposure time!

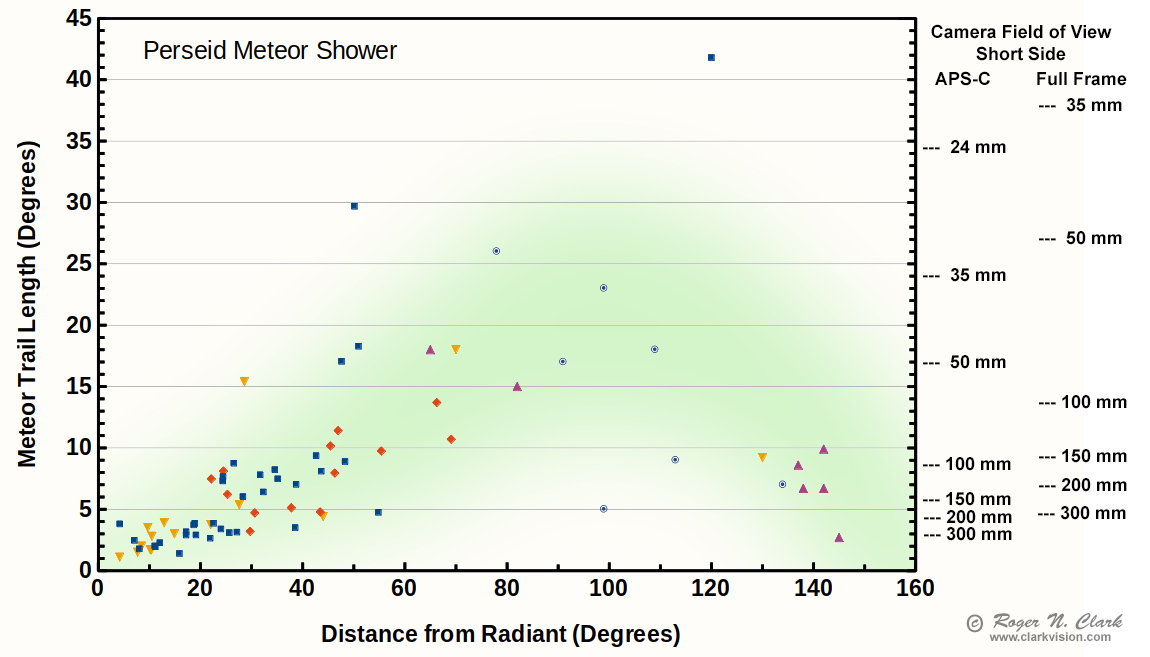

Another factor making meteor photography difficult is that their location in the sky is approximately random. Meteors will appear to radiate from a point (Figure 1). The location of this point, called the radiant, is due to the relative velocity and direction of the meteors in space and the direction and speed that the Earth is traveling through space. Close to the radiant, the meteor trails are shorter and they increase in angular length away from the radiant. This property leads to specific strategies in recording meteors.

The Lens Aperture Area versus Angular Coverage Trade

Because meteors appear in random location across the entire night sky, one might think that an all sky camera would pick up the most meteors. But this is not the case. Wide angle lenses mean short focal lengths and short focal lengths have smaller physical lens apertures, so collect less light. Thus, there is a trade between lens technology to collect a lot of light and angular coverage.

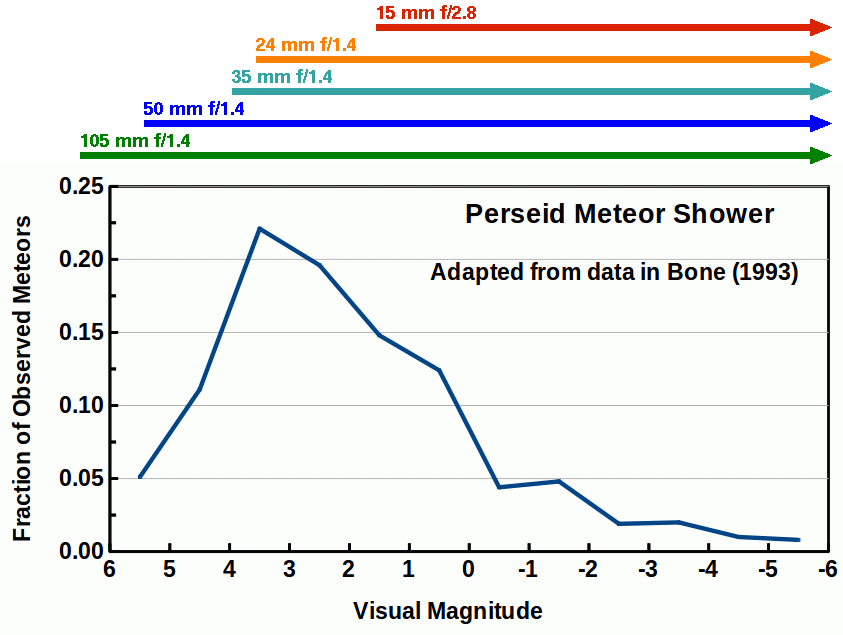

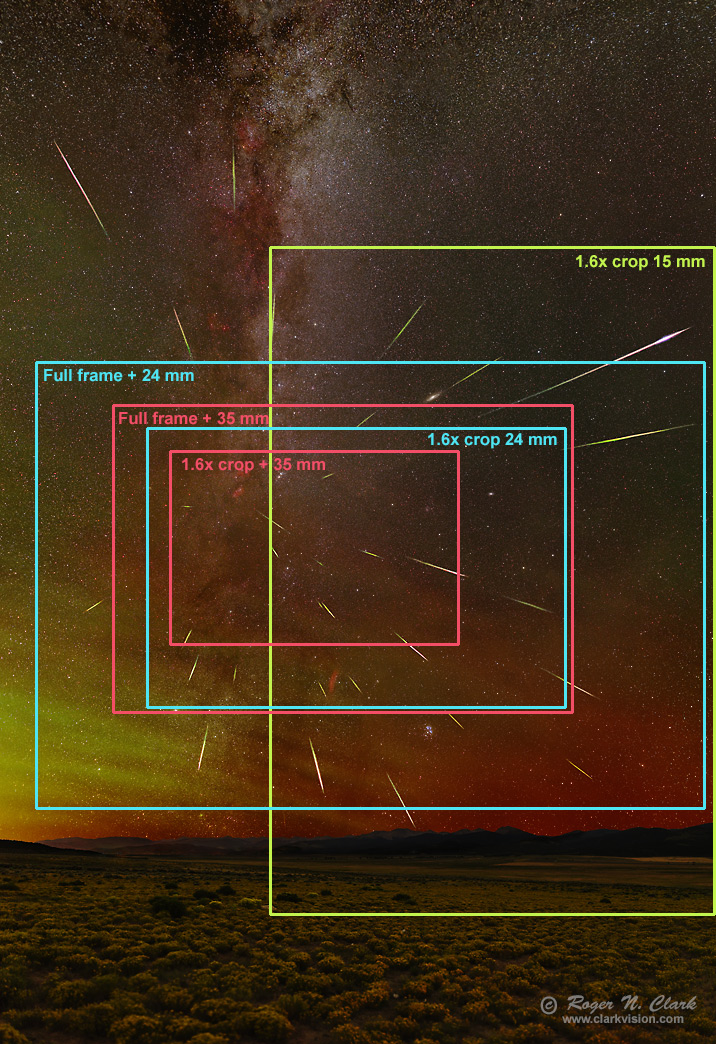

Here are some statistics of recorded meteors from the August 2015 Perseid meteor shower use to make the images in Figure 1, 2a, and 2b.

Within about 45 degrees of the radiant:

1.3x crop camera, 24 mm lens at f/1.4: 26.2 meteors / hour. (Lens field of view = 60.33 x 42.36 degrees.)

Full frame camera, 35 mm lens at f/1.4: 15.5 meteors / hour. (Lens field of view = 54.43 x 37.85 degrees.)

1.6x crop camera, 15 mm lens at f/2.8: 2.2 meteors / hour. (Lens field of view = 73.25 x 52.82 degrees.)

Greater about 90 degrees from the radiant:

Full frame camera, 35 mm lens at f/1.4: less than 1 meteor / hour. (Lens field of view = 54.43 x 37.85 degrees.)

The statistics are slightly biased between the 35 and 24 mm lenses because I was moving the position of the full frame camera with 35 mm lens to make the mosaic, but it illustrates the physics that the small aperture of the 15 mm lens collected too little light. In fact the 15 mm lens recorded only 4 full meteors and one meteor cut by the frame edge for the early morning hours during the maximum meteor peak.

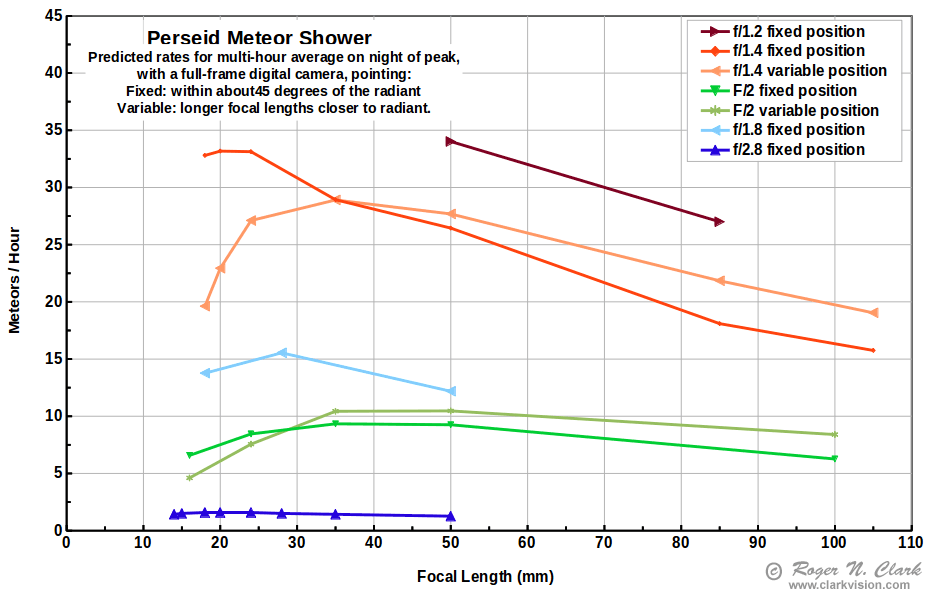

In Table 1 from Part 1a, I listed the relative meteor efficiency factors for various lenses, while Table 2 from part 1a lists faintest stars for various apertures and a 30 second exposure. But meteors travel fast, and the longer the focal length, the faster the meteor will move across a pixel. Combining Part 1a Tables 1 and 2, and assuming an average pixel gets exposed by a meteor 1/100 second with a 35 mm focal length, Table 1 below lists meteor efficiency and faintest meteor magnitudes one might expect (this is the same table as Table 3 in part 1a). Of course there are many variables, including actual meteor speed, light pollution, and pixel size, so consider this a relative scale. All the values scale with sensor size as a smaller sensor covers less angular area, which lowers the probability of catching a meteor. The table also assumes equal lens quality, which is not the case in reality.
